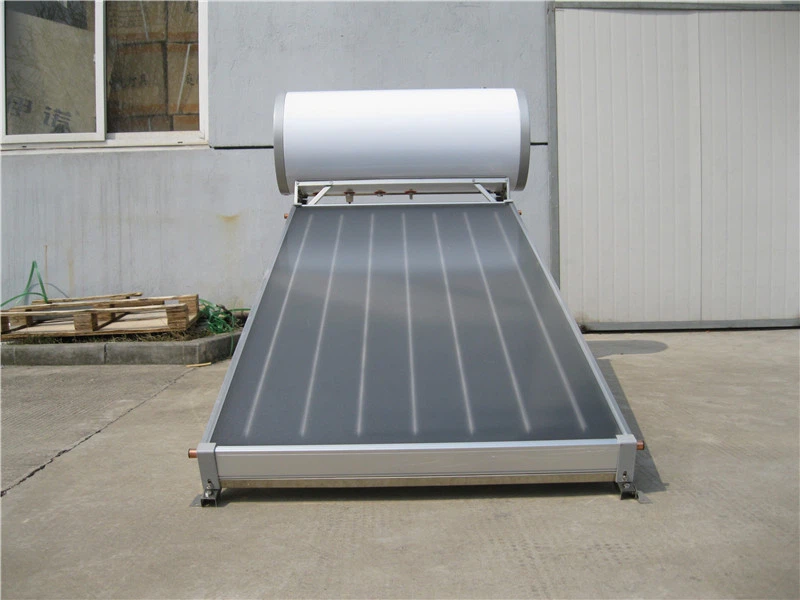

Flat Plate Solar Collector	Spec. (mm)	2000106070 2000106080
	Cover Glass	Woven tempered glass, low-iron woven tempered glass, tempered low-iron glass.
	Coating	Selective / Blue Titanium
	Core	All red copper core & pipes
	Insulation	Two possible similar versions: 1. The use of glass wool in combination with benzene plate or with polyurethane foam can provide excellent insulation properties. The glass wool acts as a barrier to reduce heat transfer, while the benzene plate or polyurethane foam offer additional insulation. This combination is suitable for a range of applications that require good insulation to maintain the desired temperature. 2. When glass wool is paired with either benzene plate or polyurethane foam, the result is a highly effective thermal insulation system. Glass wool serves as the primary insulator, slowing down the rate of heat transfer, while the benzene plate or polyurethane foam add extra layers of insulation. This combination is ideal for applications that demand superior temperature control, such as HVAC systems or industrial ovens.
Water tank	Capacity	150
	Inner tank	Food-grade stainless steel SUS304-2B
	Copper coil	All red copper Φ 12 X 1.0mm
	Insulation	Imported polyurethane integrated foam-forming 50mm
	Tank shell	Color steel plate / Stainless steel
Bracket	Spec. (mm)	1.2 ~ 1.5mm in thickness
Bracket	Material	There are three common materials used in the manufacturing industry: hot-dip galvanized steel, stainless steel, and aluminium alloy. Each material has its own unique properties, making them suitable for different applications. Hot-dip galvanized steel is known for its excellent corrosion resistance. It is coated with a layer of zinc, which protects the steel from rust and other forms of corrosion. This makes it perfect for outdoor structures and applications where exposure to the elements is a factor. Stainless steel, on the other hand, is a more versatile material. It is strong, durable, and has excellent resistance to both corrosion and staining. It is commonly used in food processing, medical equipment, and chemical processing applications due to its hygienic, non-toxic properties. Lastly, aluminium alloy is lightweight, strong, and easily machined. It is commonly used in aerospace, automotive, and architectural applications for its excellent strength-to-weight ratio. In conclusion, the choice of material largely depends on the application. While each material has its unique advantages and disadvantages, hot-dip galvanized steel, stainless steel, and aluminium alloy continue to be popular choices for many industrial applications.
Accessories	The T&P valve, magnesium rods, workstation, and electrical heater are all important components of a functioning system. They work together to create a safe and efficient system for heating water. The workstation provides a central location for all of the components to be housed and connected. The electrical heater is responsible for heating the water to the desired temperature, while the magnesium rods help prevent corrosion in the tank. Finally, the T&P valve ensures that the pressure and temperature within the tank are regulated and kept at safe levels. All of these components play an important role in creating a reliable and effective water heating system.
Pressure	7 bar
Tilt angle	0° ~ 90°
Water output	45~95 ℃

Technical specification

The system operates through pump circulation, with the collector separated from the water tank.

Our automatic control system ensures reliable operation and delivers a constant water temperature.

One benefit of having a water tank in your house is its versatility in placement. It can be installed anywhere without the worry of rust buildup which can extend the life of the tank. This means that you won't have to replace it often, making it a sound investment in the long run.

The collector unit can be easily installed in any available space, whether it's a balcony, wall, or even on the roof. Regardless of the location, the system can be easily set up and ready to use in no time.

The installation and operation of the system is incredibly easy and convenient, seamlessly integrated with the building as a whole. Its design ensures that the process is uniform and simple to follow.

Competitive Advantage

Our INLIGHT flat panel collector boasts a remarkable ability to rapidly heat water with high efficiency. It utilizes advanced solar collecting technology, resulting in an incredible heating efficiency.
Under the automatic control, the entire system operates under high temperature and pressure with an intelligent pressurization mechanism.
The pressurized storage tank has a well-thought-out and scientific design that enables it to undergo 100,000 cycles of fatigue testing without sustaining any damage. Additionally, the tank can be fitted with an anode magnesium and backup heating device to augment solar water heating.
The installation of a split modularized structure makes it much easier and more adaptable to different roof structures. One of the key advantages is that the collector can be installed without much difficulty. Additionally, the storage tank is placed inside the house, which eliminates the need to consider the load bearing capacity of the house roof. This arrangement ensures convenience and flexibility in the installation process. By adopting this approach, the solar system can be easily tailored to fit the specific requirements of any roof structure without compromising the structural integrity of the house.
6. A system that is safe, stable, and reliable, operates automatically, and requires minimal maintenance. This system can effectively be employed in regions facing extremely cold temperatures by utilizing anti-freezing fluids as a heat-transfer medium.

Working Theory

The INLIGHT split flat panel solar water heater is designed as a closed-loop solar system. It incorporates a heat exchanger within a pressurized storage tank. The system effectively transfers heat by circulating a mixture of glycol-water antifreeze as the heat-transfer fluid between the panel collector and heat exchanger. This process facilitates the release of heat into the water stored in the tank. These types of solar systems are particularly popular in regions that experience prolonged subzero temperatures as they provide excellent freeze protection. By offering such freeze protection, these systems ensure optimal performance and durability even in extreme weather conditions.

Applications

Domestic hot water for shower, washing. Solar Thermal, Project: such as School, Hospital, Hotel.

Our Advantages

Our Product is economic and environmental;
Our Product is durable and has a long service life;
We have rich production experience.The quality of Product is reliable;
We have a perfect production process and strict quality control system;
We have perfect service system and will give you the best service.

Pre-sale Service

Sample can be offered with sample charge and courier fee by buyer's side.
We have full stock,and can deliver within short time.Many styles for you to choose.
OEM and ODM order are accepted, Any kind of logo printing or design are available.
Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
We have rich experience of design, manufacture and sell water heater, we cherish every order from our honor.

After you choose

We will count cheapest shipping cost and make invoice to you at once.
Check quality again, then send out to you at 1-2 working day after your payment,
Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
We are very glad that customer give us some suggestion for price and products.
If any question,please contact with us freely by E-mail or Telephone.
