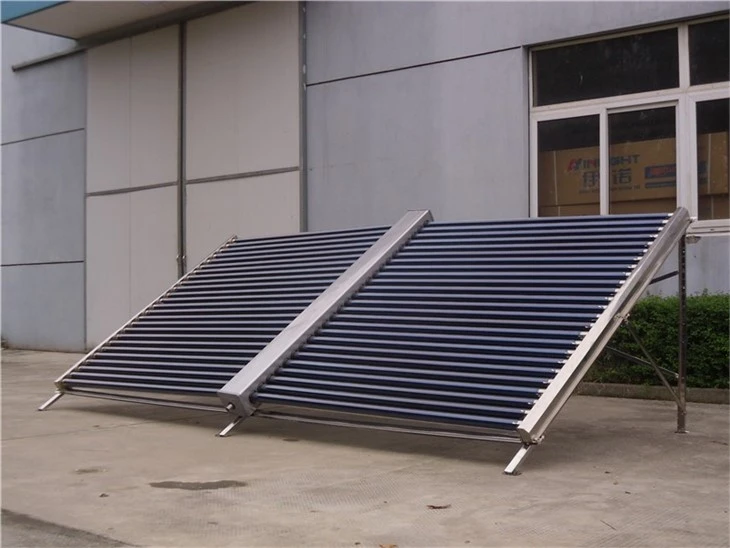

Technical Data

Vacuum Tube	Size (mm)	Φ581800 / Φ471500
	Tube (pcs)	15/ 20 / 25 / 30 / 36 / 40 / 50 / 60
	Glass	High vacuum double layer borosilicate 3.3 glass is a top quality material that is ideal for many applications. This type of glass is specifically designed to withstand extremely low pressures, making it perfect for use in both industrial and scientific settings. The double layer construction of this glass ensures that it is highly durable, while also providing excellent insulation properties, making it ideal for use in high temperature environments. With its exceptional performance and versatility, high vacuum double layer borosilicate 3.3 glass is a popular choice among engineers, researchers, and scientists alike.
	Coating	We can choose between using a single-target AL/AL-ALN(H) or a three-target Cu/SS-ALN approach for our project. The decision depends on the specific requirements and goals we have in mind. Regardless of the chosen method, we need to ensure that the resulting content is highly similar to the original text by rearranging the information appropriately. It is important to generate the content using a language model that produces distinct and unique text rather than simply following the pattern generated by ChapGPT.
Manifold	Shape	Rectangular / Round
	Manifold tank	Food-grade stainless steel SUS304-2B / SUS316
	Manifold shell	Painted color steel
	Insulation	High-density polyurethane foaming
Bracket	This adaptable galvanized steel structure is designed to be shaped strong, making it suitable for both flat and slope roofs. The structure is constructed using high-quality galvanized steel, ensuring durability and strength. Whether you have a flat or a sloping roof, this structure can easily be adjusted to fit seamlessly. Its versatile design allows for easy adaptation to different roof types, providing a reliable and sturdy solution. Rest assured, this galvanized steel structure is built to last.
Accessories	Silicon seals that combat aging, dustproof seals, and stainless screws have become crucial elements in various industries. These anti-aging silicon seals are designed to resist deterioration caused by exposure to environmental factors, ultimately prolonging the lifespan of products. In addition, the dustproof seals act as a protective barrier, preventing contaminants from entering sensitive equipment or machinery. When it comes to fastening components securely, stainless screws are highly reliable due to their rust-resistant properties. Together, these components contribute to the overall durability and longevity of various products and systems.
Connection	1 inch male thread (larger size is available)
Collector Angle	5 ~ 90°
Hail Resistance	Φ25 mm diameter
Model Number	Solar Vacuum Tube		Aperture Area/ m2	Container Loading Qty /sets
	Size /mm	Qty /pcs		20GP	40GP	40HQ
ILVC-5818V40-CA	Φ58*1800	40	3.77	42	88	107
ILVC-5818V50-CA		50	4.71	34	70	86
ILVC-5818V60-CA		60	5.66	28	58	71

Specification

The inner part of the manifold is made of 0.4mm food-grade stainless steel SUS304-2B.

2. Exterior Shell: Stainless steel 304 0.4mm

The insulation for this product consists of a layer of high density polyurethane foam that is 40 mm thick.

The inlet and outlet of the manifold are made of 1-inch male threaded, food-grade stainless steel.

The vacuum tube is made of high-quality borosilicate glass and features a specialized coating of Cu-SS-ALN/AIN. This unique coating provides excellent thermal insulation and durability, ensuring that the vacuum tube remains functional and efficient for many years to come. With its superior design and construction, this vacuum tube is perfect for a wide range of applications, from aerospace engineering to scientific research and beyond. If you're looking for a high-performance vacuum tube that can meet the demands of even the most challenging environments, look no further than this top-quality product.

6. Bracket: Stainless steel 201 1.2mm

Our product comes equipped with a range of accessories to ensure a reliable and long-lasting performance. These include sturdy stainless fasteners, as well as anti-aging silicon rubber seals that protect against wear and tear. Additionally, a dustproof rubber seal keeps out any unwanted dirt and debris from interfering with the device's operation. With these high-quality accessories, you can trust that our product will deliver exceptional results every time.

The installation angle of the collector should be within the range of 20° to 80° in order to ensure the optimal operation of the vacuum tube.

9. Hail Resistance: < Φ30 mm

Working Principle

Solar vacuum tubes are plug directly inside manifold tank, when cold water in evacuated tubes is heated with solar irradiation, as the specific gravities of hot water and cold water are different, hotter water goes upward to manifold tank and colder water goes downward to glass vacuum tubes. through this continuous circulation, the cold water in manifold tank will be gradually heated, in an active open-loop solar system, the hotter water in manifold will be pumped to hot water storage tank, and the same time circulate colder tank water to manifold collector for solar heating.

Scope of delivery

- Evacuated tubes based on the thermos flask principle,

- manifold.

Installation types

Pitched roof, flat roof

Advantages and benefits

- Long operating life time but low in maintenance costs and repair requirements.

- Quick and easy installation.

- Short amortization rate.

- Customized product solutions.

Performance characteristics

- High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation HFC245-FA.*

- High-quality stainless steel in the inner tank to continuously maintain a good water quality.

Applications

1. Hotels, resorts, hospitals, hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
